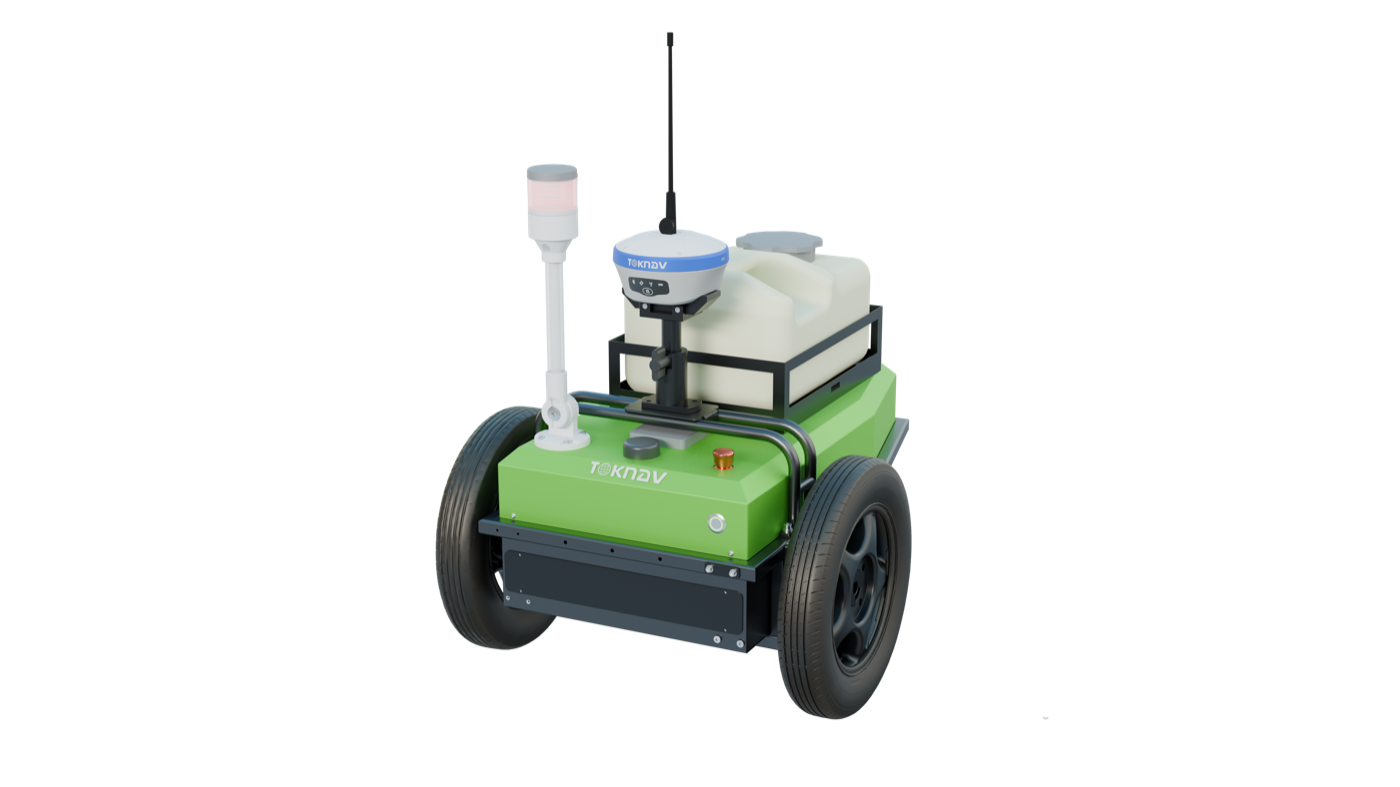

TR10 Marking Robot

Sports Field Marking Robot

An auxiliary work robot capable of automatically measuring, marking, and drawing lines. Sports fields, Highways, Municipal roads, Airport runways…

TR10 Marking Robot

Sports Field Marking Robot

An auxiliary work robot capable of automatically measuring, marking, and drawing lines. Sports fields, Highways, Municipal roads, Airport runways…

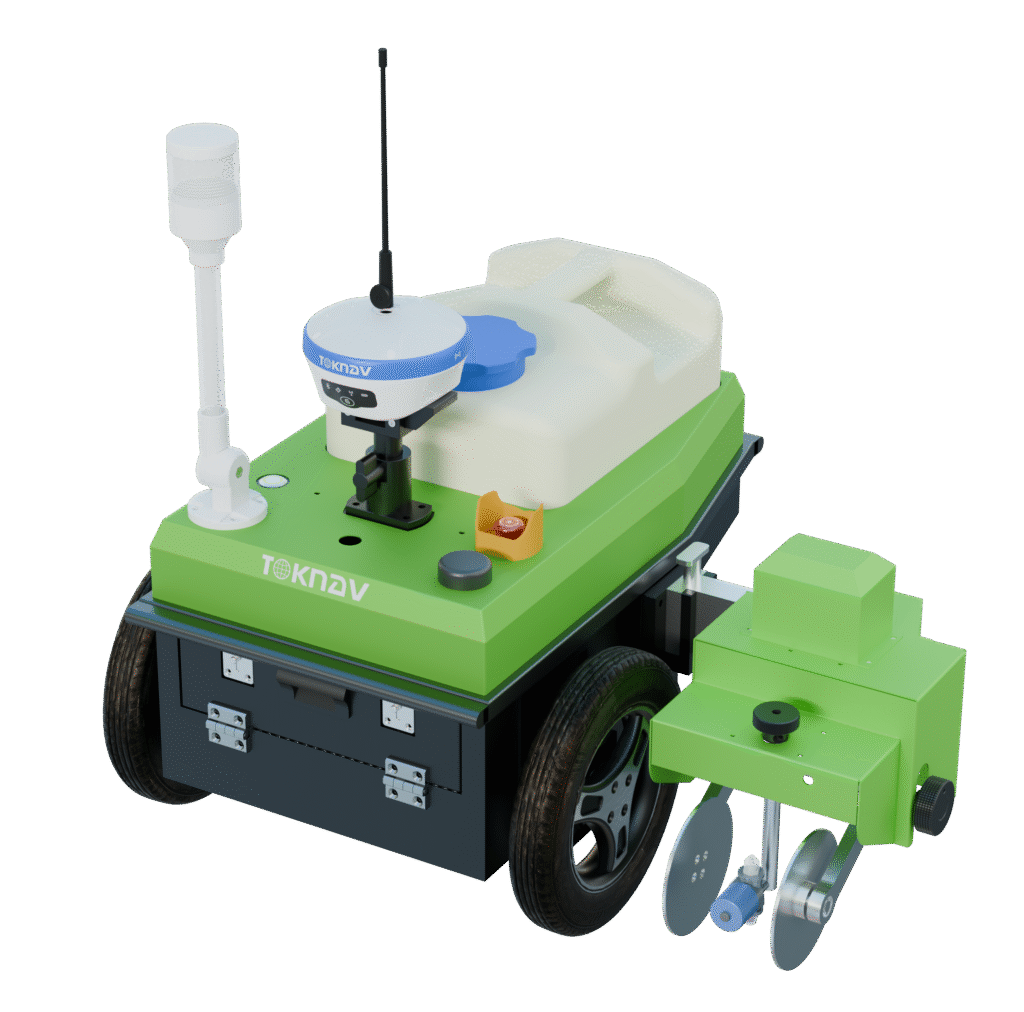

划线宽线5

System Architecture

Import design files

dxf
csv
直线 3

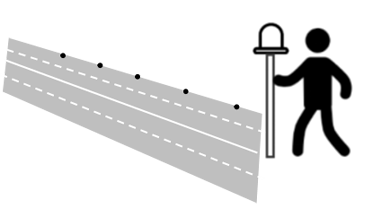

Manual point collect via RTK

rtk踩点
直线 3

Select standard model on tablet

路面
箭头 1

Algorithm

Decrypt, Calculation

Task scheduling, Route planning, Measuring and Locating

Automatic marking, drawing

Task recording and report

Project management, progress, statistics, review, etc

箭头 1

Results

1

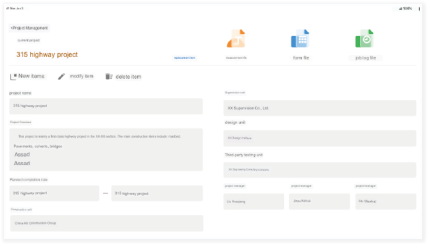

4

Application Area

application2

Highway

application1

Parking lot

f100025595

Sport fields

application5

Municipal road

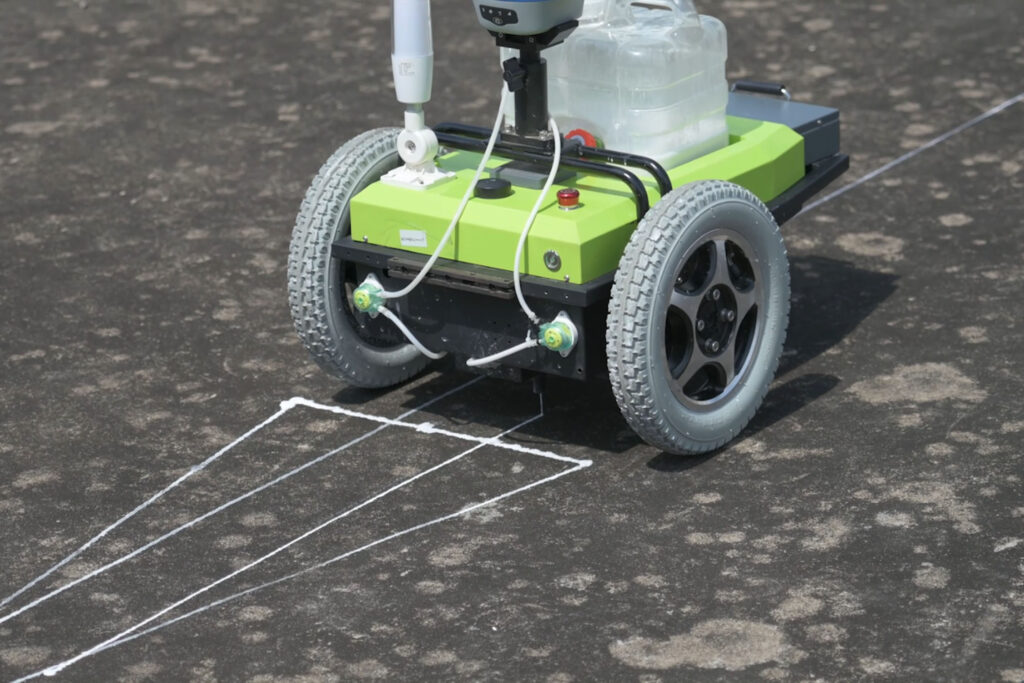

application6

Agriculture

Hardware Parameters

Physical

Dimensions(L*W*H):

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

558mm*610mm*527mm

400mm

465mm

36kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/15Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°(Turn in place)
20°

Pre-Marking

Speed:
2.6km/h
Material:
Latex paint/Titanium white slurry
Accuracy:
less than 1.5cm
Line types:
Dots, lines, curves, numbers, letters, patterns

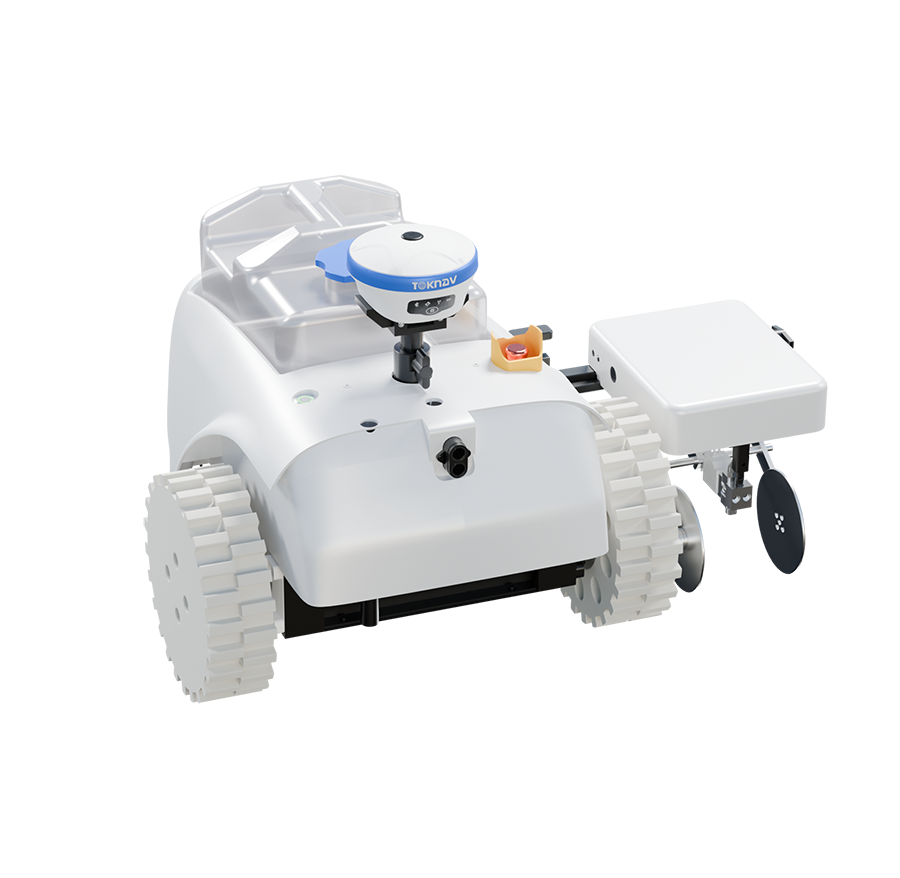

Hardware Parameters

Physical

Dimensions(L*W*H):
525mm*746mm*527mm
(Removable side scribing mechanism with a width of 243mm)

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

400mm

465mm

45kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/7.5Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X
划线宽线4

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°((Turn in place)
20°

Field Marking

Sports Field Type:
Running track, tennis court, soccer field, football field, lacrosse court, baseball field
Drawing Width:
5cm~15cm adjustable side nozzle

Hardware Parameters

Physical

Dimensions(L*W*H):

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

558mm*610mm*527mm

400mm

465mm

36kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/15Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°(Turn in place)
20°

Pre-Marking

Speed:
2.6km/h
Material:
Latex paint/Titanium white slurry
Accuracy:
less than 1.5cm
Line types:
Dots, lines, curves, numbers, letters, patterns

Hardware Parameters

Physical

Dimensions(L*W*H):
525mm*746mm*527mm
(Removable side scribing mechanism with a width of 243mm)

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

400mm

465mm

45kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/7.5Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X
划线宽线4

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°((Turn in place)
20°

Field Marking

Sports Field Type:
Running track, tennis court, soccer field, football field, lacrosse court, baseball field
Drawing Width:
5cm~15cm adjustable side nozzle

Download

TR10 series Marking Robot.PDF
