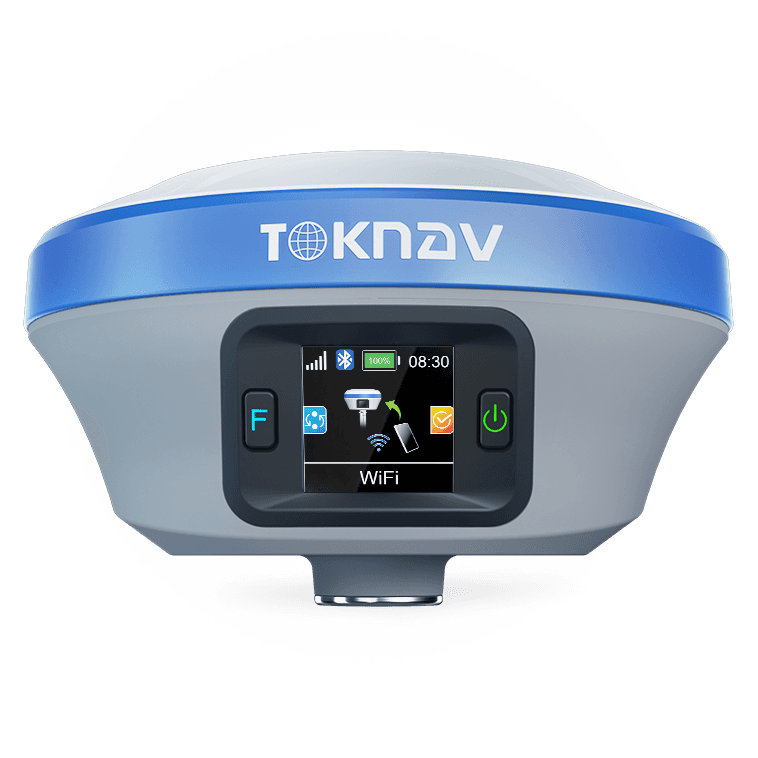

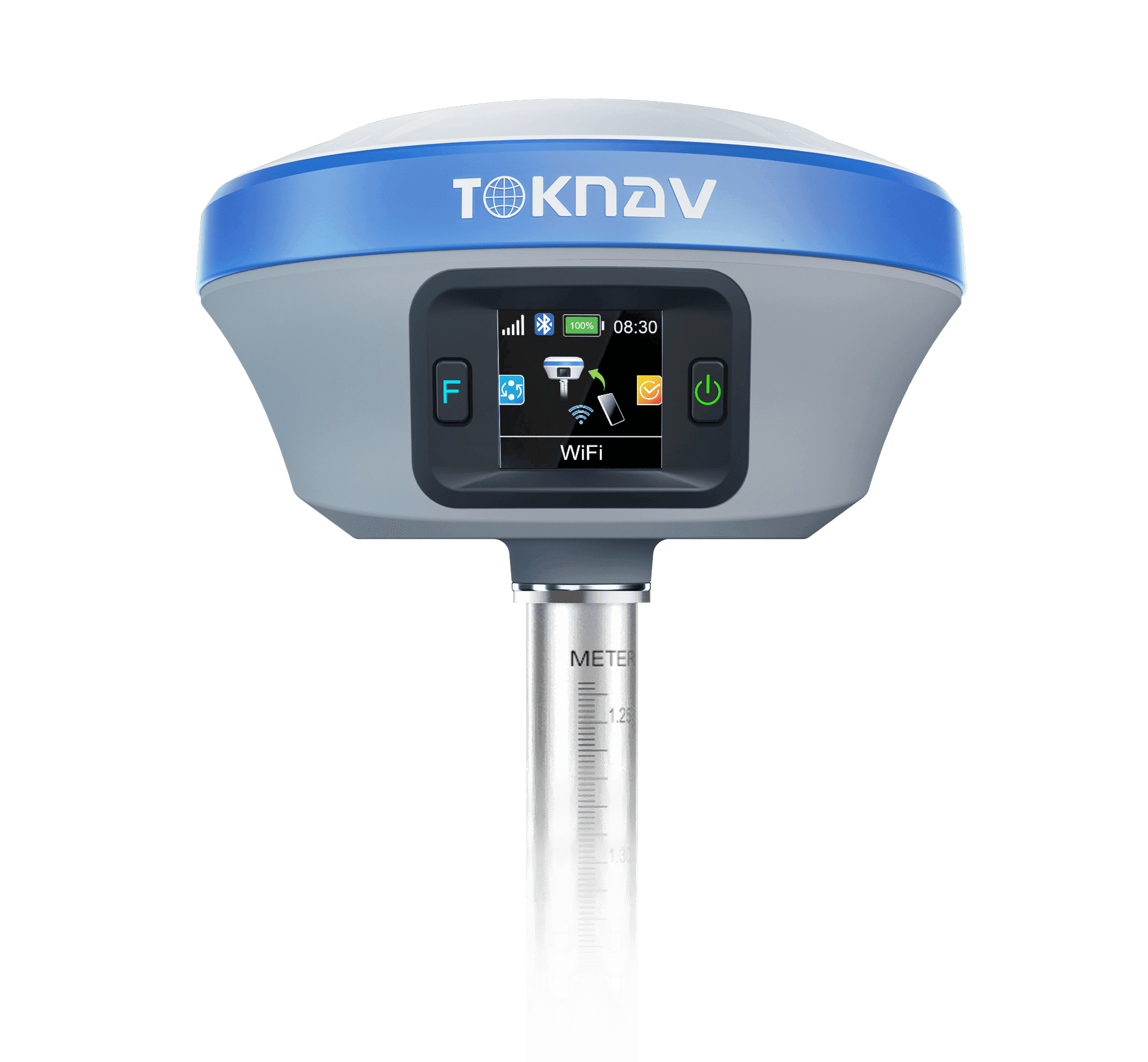

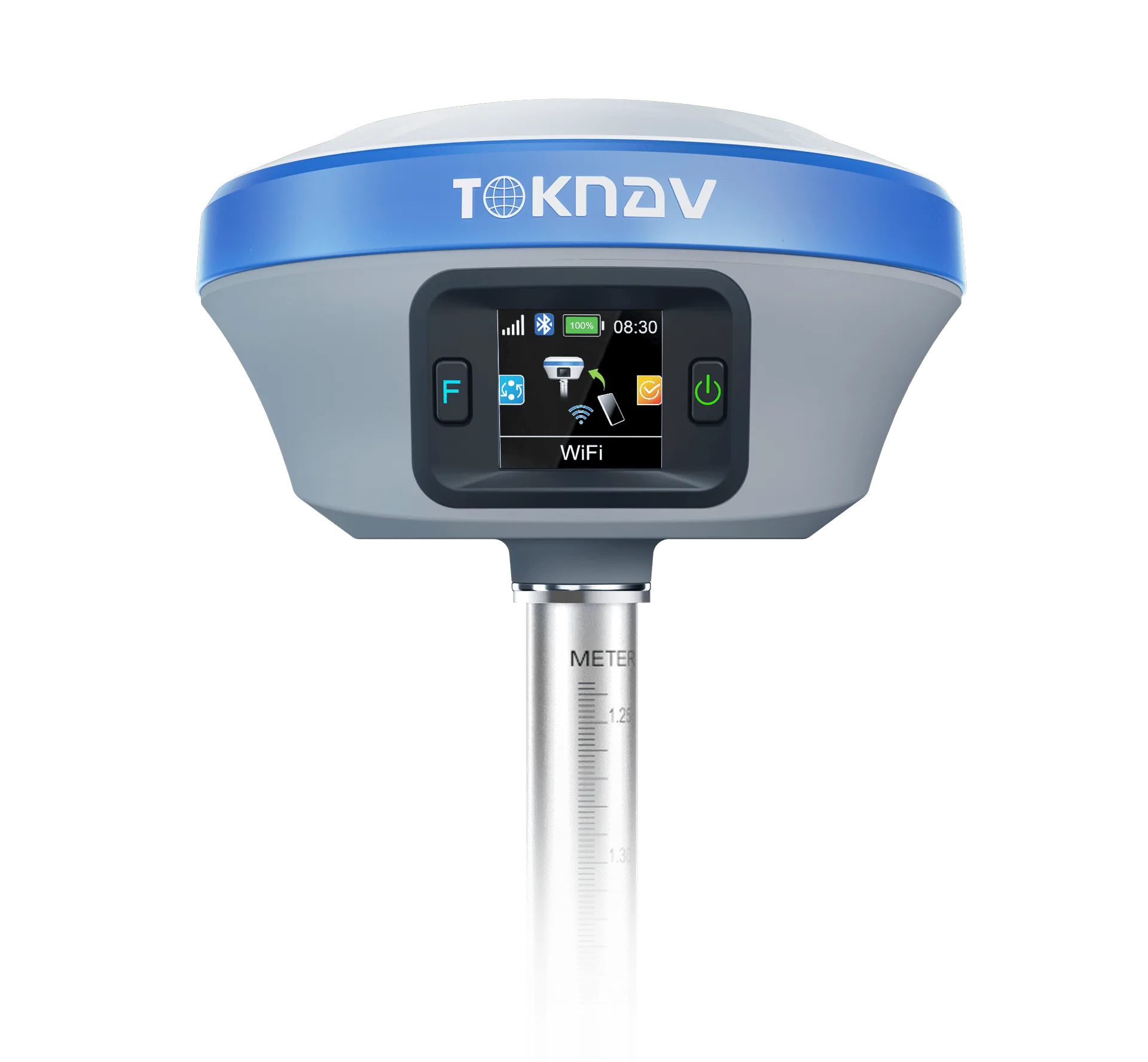

TOKNAV T20Pro RTK GNSS Receiver
T20Pro RTK GNSS receiver with tilt compensation and 5W radio

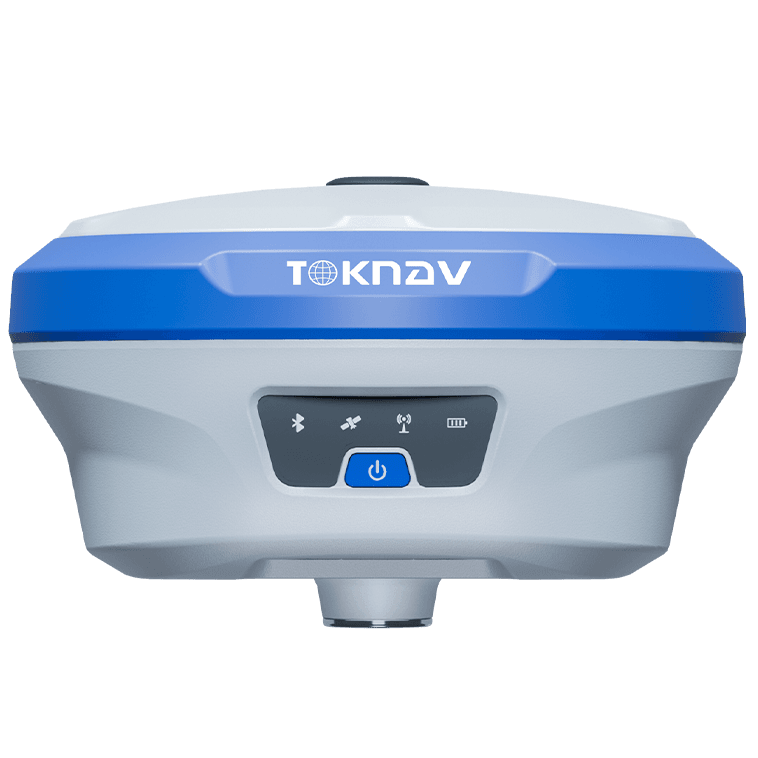

TOKNAV T20Pro is an RTK GNSS receiver for professional survey crews that need multi-constellation positioning, IMU tilt compensation, built-in radio and field-ready durability. Use this page to compare T20Pro with T10Pro, tBase and complete RTK base-rover workflows.
Multifunctional Intelligent RTK
T20Pro is a high-performance GNSS receiver that provides an easy-to-use solution for users. TOKNAV T20Pro supports the original tilt compensating GNSS solution. Multi constellation and frequency tracking always guarantee a fixed solution for your job, LCD display screen can make your operation faster and easier. T20Pro built-in 5W radio allows users to have a longer working distance, up to 16km in open areas, The durable lP68 design makes it possible to work in extreme environments.
T20Pro
Multifunctional Intelligent RTK
T20Pro is a high-performance GNSS receiver that provides an easy-to-use solution for users. TOKNAV T20Pro supports the original tilt compensating GNSS solution. Multi constellation and frequency tracking always guarantee a fixed solution for your job, LCD display screen can make your operation faster and easier. T20Pro built-in 5W radio allows users to have a longer working distance, up to 16km in open areas, The durable lP68 design makes it possible to work in extreme environments.
22nm progress high-precision chip and 60dB low-power anti-interference technology
OLCD display
Comprehensive network coverage and compatible with global network providers
Ultra-long endurance with accurate battery status
The 5th generation IMU technology
Product Parameters
Size
Φ143.5mm*90.7mm
Weight
900g
Operating System
Channel
GNSS Tracking
Data Communication
Data Storage
Protection
Work Time
Linux
1408
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
4G, Bluetooth, WiFi, Radio
32GB storage
IP68
16 hours
Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
Related Contents
T20Pro RTK GNSS Receiver specifications, applications and FAQ
High-performance multifunctional RTK receiver with tilt compensation, LCD operation, 5W radio and IP68 field design for professional survey and construction workflows.
T20Pro RTK GNSS Receiver key parameters from the latest English datasheet
| GNSS channels and signals | 1408 channels; GPS, GLONASS, BDS, Galileo, QZSS, SBAS and NavIC support as listed in the latest English brochure |
|---|---|
| Accuracy | RTK horizontal +/- (8mm+1ppm), vertical +/- (15mm+1ppm); tilt correction within 60 degrees less than 2cm |
| Radio and display | Built-in 1W/2W/5W radio, 410-470MHz, up to 16km in open areas; 1.3-inch LCD, 240 x RGB x 240 |
| Battery and body | 7.4V 6500mAh, more than 18 hours typical rover/GSM; 143.5mm x 90.7mm; 900g |
| Environment | IP68, -20C to +60C working temperature and 1.5m pole drop resistance |
Application scenarios
- Professional surveying and mapping
- Construction layout and stakeout
- Base-rover workflows needing built-in radio
- Harsh outdoor survey environments
- Display-guided field operation
Related products and solutions
FAQ
What applications is T20Pro best suited for?
T20Pro fits professional RTK surveying, mapping, construction layout, stakeout and field positioning tasks that need stable multi-constellation tracking.
Does T20Pro support tilt compensation?
Yes. The brochure lists tilt correction within 60 degrees with less than 2cm accuracy.
How far can the built-in radio work?
The brochure states the 5W radio can reach up to 16km in open areas. Actual range depends on terrain, antenna setup, interference and local regulations.
Is T20Pro suitable for harsh field environments?
Yes. It is listed with IP68 protection and 1.5m pole drop resistance.
Compare T20Pro for your RTK workflow
Contact TOKNAV to compare T20Pro with T10Pro and tBase for survey, construction or distributor projects.
