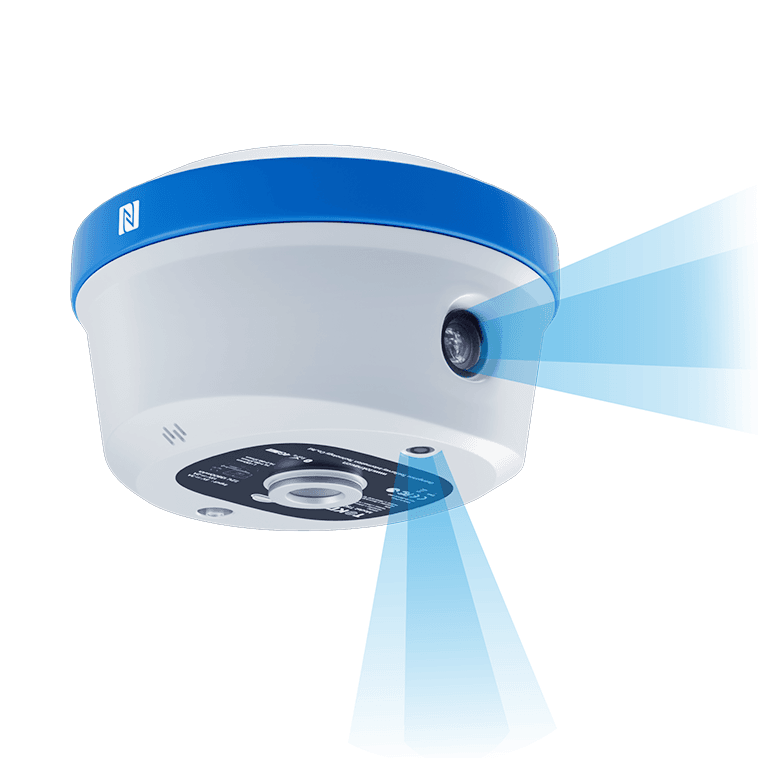

TOKNAV T50Pro GNSS RTK Receiver
T50Pro GNSS RTK receiver for photogrammetry survey and AR stakeout
TOKNAV T50Pro is a GNSS RTK receiver for professional surveying, photogrammetry, IMU tilt measurement and AR real-time stakeout. It fits survey teams and distributors that need a portable RTK rover with multi-constellation tracking, visual measurement, field software support and quotation-ready datasheets.
Palm-Sized Photogrammetry RTK
T50Pro is a portable multi-functional GNSS RTK receiver for photogrammetry, AR stakeout and professional field work. It supports full-system multi-frequency satellite tracking, 4G, Bluetooth, WiFi and an integrated data-transmission radio.
Configure a cost-effective T50Pro kit around your correction source and field workflow. TOKNAV can recommend the receiver, controller, pole, radio and accessories for your country or region rather than publish a one-size-fits-all price.
T50Pro
Palm-Sized Photogrammetry RTK
T50Pro is a portable multi-functional GNSS. It has a built-in high-precision positioning module that supports tracking satellite signals from all systems and frequency bands. It is equipped with 4G full network access, bluetooth, WIFI and built-in data transmission radio. The high-precision IMU integrates AR and Photogrammetry to achieve tilt measurement, Photogrammetry and AR real-Time Stakeout, making the measurement work more convenient and efficient.
Full System GNSS Reception
The least generation IMU technology
Equipped with Lora Radio, featuring a maximum transmission distance of 15 km.
Integrated photogrammetric and AR Real-time Stakeout
Only 770g in weight
Product Parameters
Size
Φ132mm*83mm
Weight
770g
Operating System
Channel
GNSS Tracking
Data Communication
Data Storage
Protection
Work Time
Linux
1408
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
4G, Bluetooth, WiFi, Radio, NFC
8GB storage
IP68
16 hours
Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
