TCA920

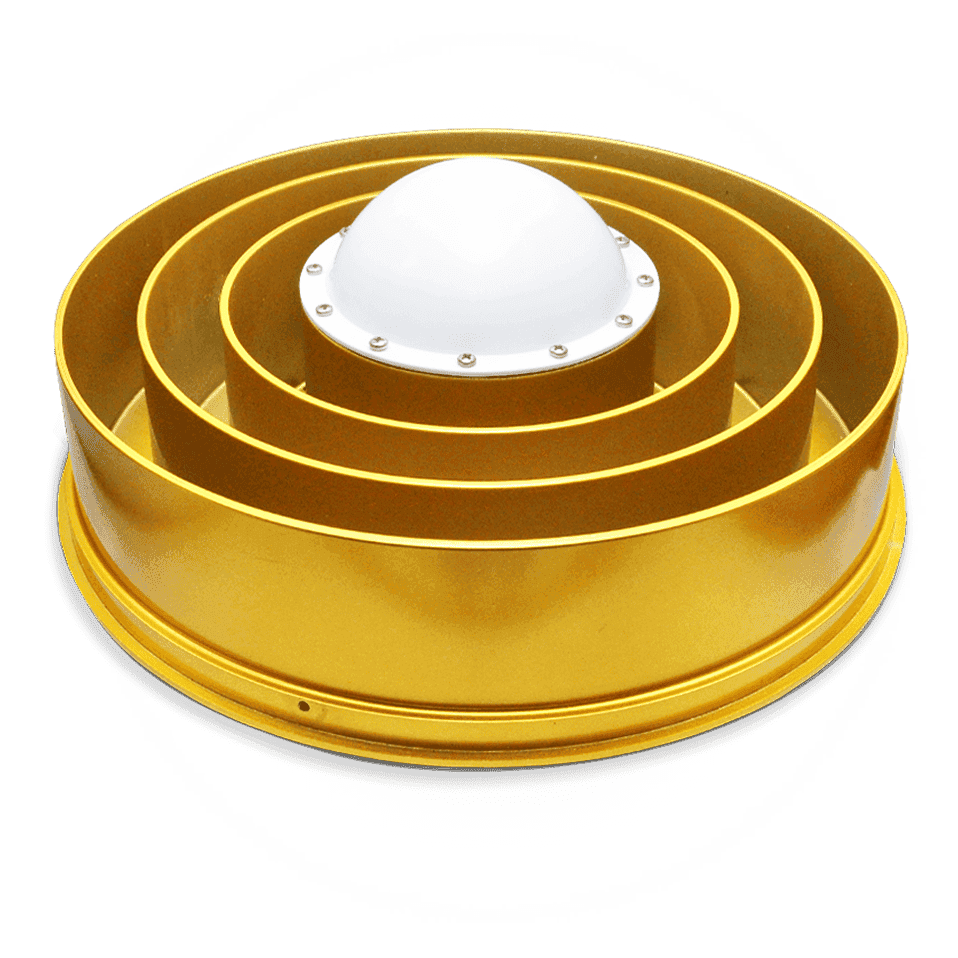

2D Choke Ring Antenna
The TCA920 utilizes a traditional 2D design, covering multiple frequency points. With multipath suppression technology, it can mitigate the effect of multipath effect on measurement and positioning accuracy. This antenna is well-suited for applications in surveying, aviation, reference stations, government, and mechanical control, among others.
TCA920
2D Choke Ring Antenna
The TCA920 utilizes a traditional 2D design, covering multiple frequency points. With multipath suppression technology, it can mitigate the effect of multipath effect on measurement and positioning accuracy. This antenna is well-suited for applications in surveying, aviation, reference stations, government, and mechanical control, among others.
Multi-constellation and multi-frequency
Strong anti-interference performance
Millimeter-level accuracy
Wide frequency range, versatile application areas
High phase center stability
Product Parameters
Size
Φ322mm*261mm
Weight
5.6kg
GNSS Tracking
Axial Ratio
LNA Gain
Protection
Humidity
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
≤2dB
50dB(typical)
IP67
95% non-condensing
Related Contents
TCA920 Choke Ring GNSS Antenna specifications, applications and FAQ
2D choke ring GNSS antenna with strong multipath suppression for CORS, reference stations, surveying, monitoring and high-precision receiving systems.
TCA920 Choke Ring GNSS Antenna key parameters from the latest English datasheet
| Signal tracking | GPS L1/L2/L5/L-Band, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, SBAS L1/L5 and NavIC L5 |
|---|---|
| LNA and impedance | 50 ohm nominal impedance, RHCP polarization, axial ratio <=2dB, LNA gain 50dB typical and noise figure <=2dB |
| Gain and delay | 6dBi maximum gain at zenith for 1205-1278MHz and 1559-1615MHz; group delay ripple less than 5ns |
| Power and body | +3.3VDC to +12VDC operation, 60mA maximum current, TNC female connector, BSW 5/8-11 mount |
| Environment | 322mm x 261mm, <=5.6kg, IP67, -40C to +85C operation, NGS/CE/FCC/RoHS listed |
Application scenarios
- CORS and reference station antenna deployments
- RTK base station and high-precision receiving systems
- Machine control and surveying projects
- Government or infrastructure positioning networks
- Applications where multipath suppression is important
Related products and solutions
FAQ
What is TCA920 used for?
TCA920 is used for surveying, reference stations, monitoring, machine control and other applications that require stable GNSS signal reception.
Why use a choke ring antenna for reference station work?
A choke ring antenna helps suppress multipath effects, which is important for fixed reference stations and high-precision positioning networks.
Which TOKNAV receivers can be paired with TCA920?
TCA920 can be positioned with CORS/reference station receivers such as NET660, NET660i and tBase depending on project design.
What installation details should buyers confirm?
Confirm receiver model, mounting environment, surrounding obstructions, cable plan, required signals and target accuracy before final antenna selection.
Request TCA920 antenna selection support
Send your station environment, receiver model and installation requirements to TOKNAV for antenna selection guidance.
