T10Pro
Engineering-level Standard RTK
T10Pro GNSS receiver is an engineering-standard level RTK launched by Toknav. Equipped with seamless IMU60 technology, 1408-channel high-performance motherboard, it guarantees the high precision of the signal. With IP68 protection, it’s resilient in harsh environments. Intelligent voice prompts improve the efficiency and experience of user.

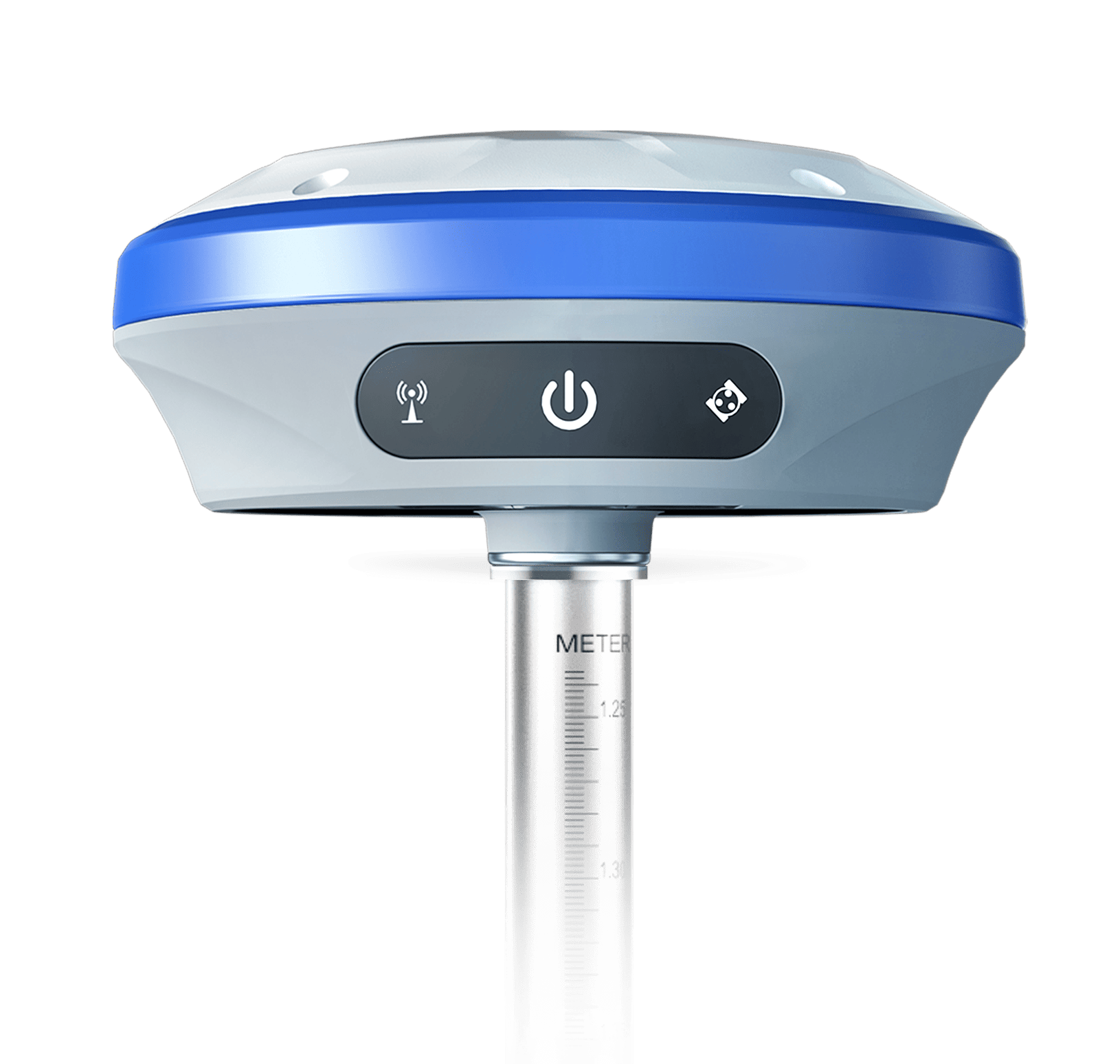

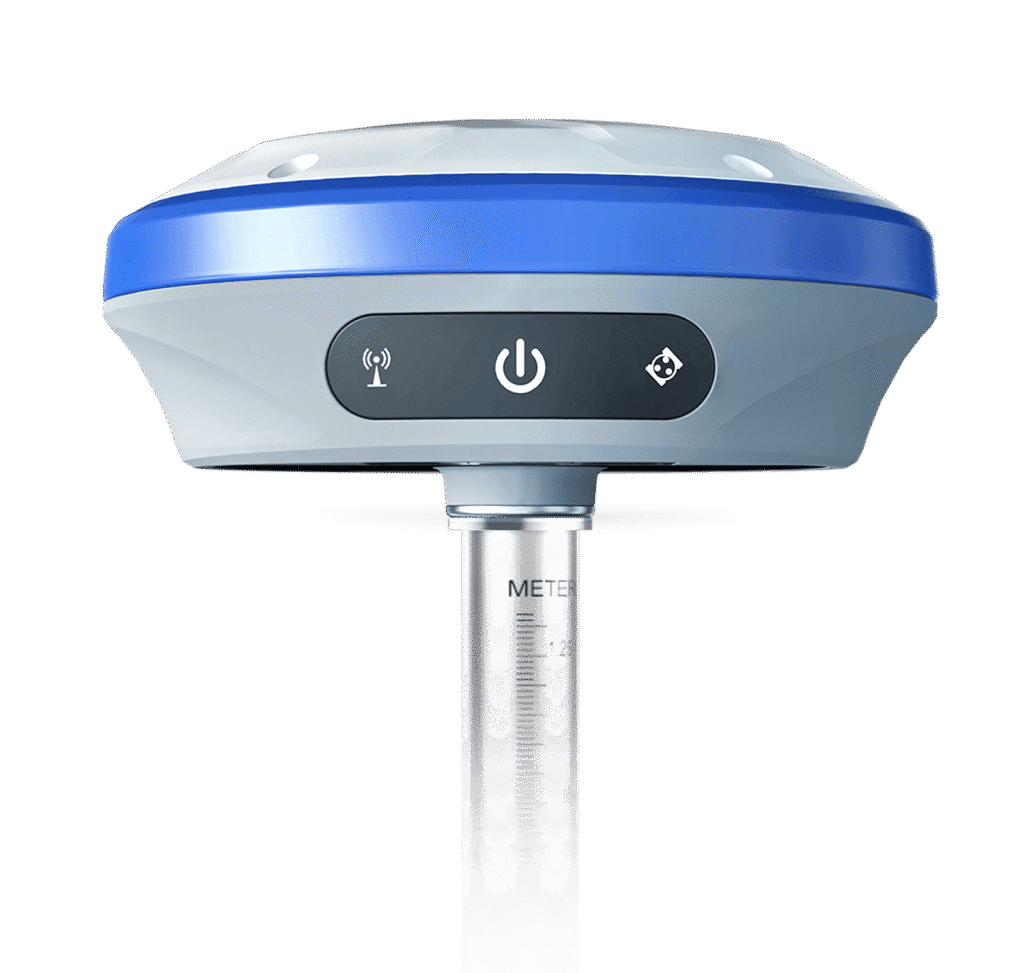

TOKNAV T10Pro Engineering RTK GNSS Receiver
T10Pro engineering RTK GNSS receiver for daily surveying workflows
TOKNAV T10Pro is an engineering RTK GNSS receiver for survey, construction, mapping and distributor packages that need a practical multi-frequency rover. The page connects T10Pro specifications with base station options, antenna selection and inquiry support.
Engineering-level Standard RTK
T10Pro GNSS receiver is an engineering-standard level RTK launched by Toknav. Equipped with seamless IMU60 technology, 1408-channel high-performance motherboard, it guarantees the high precision of the signal. With IP68 protection, it’s resilient in harsh environments. Intelligent voice prompts improve the efficiency and experience of user.
Multi-constellation and multi-frequency
Four-in-one mircowave antenna
The 5th generation IMU technology
Intelligent voice promption
Complete set of certification
Product Parameters

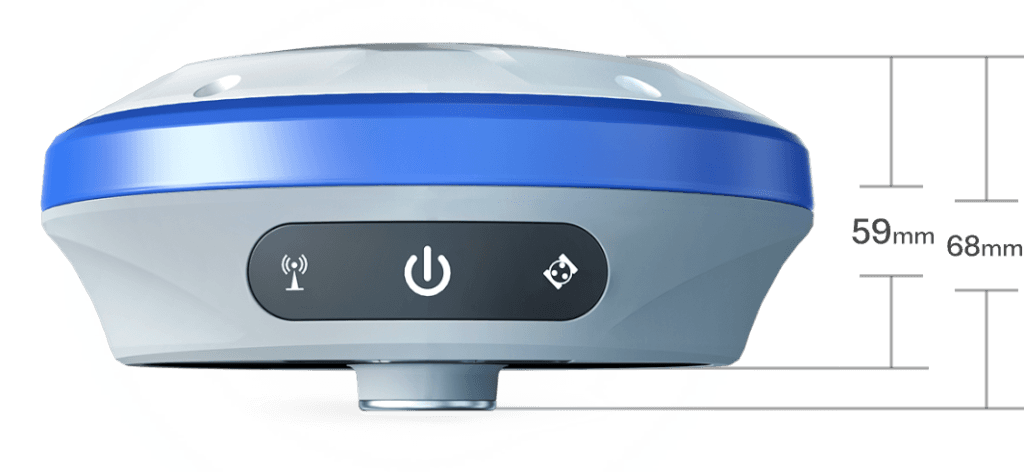

Size
Φ147.9mm*68mm
Weight
740g
Operating System
Channel
GNSS Tracking
Data Communication
Data Storage
Protection
Work Time
Linux
1408
GPS, GLONASS, BDS, GALILEO, QZSS and SBAS
4G, Bluetooth, WiFi, Radio
32GB storage
IP68
16 hours
Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
Related Contents
T10Pro Engineering RTK GNSS Receiver specifications, applications and FAQ
Engineering-level standard RTK receiver with 1408 channels, Linux system, IMU60 tilt workflow, IP68 protection and voice prompts for daily survey work.
T10Pro Engineering RTK GNSS Receiver key parameters from the latest English datasheet
| GNSS channels and signals | 1408 channels; GPS, GLONASS, BDS, Galileo, QZSS, SBAS and NavIC support as listed in the 2025 English brochure |
|---|---|
| Accuracy | RTK horizontal +/- (8mm+1ppm), vertical +/- (15mm+1ppm); static horizontal +/- (2.5mm+0.5ppm), vertical +/- (5mm+0.5ppm) |
| Tilt and radio | IMU tilt compensation within 60 degrees less than 2cm; 410-470MHz radio, 0.5W/1.5W |
| Battery and body | 3.7V 9600mAh, more than 16 hours typical rover/GSM; 147.9mm x 68mm; 740g |
| Environment and certification | IP68, -20C to +60C operation, NGS, CE, FCC and KC listed in the brochure |
Application scenarios
- Engineering survey and construction layout
- Standard RTK surveying for contractors and distributors
- Outdoor work in dust, rain and rough field conditions
- Voice-guided field operation
- Cost-conscious RTK projects needing core positioning performance
Related products and solutions
FAQ
What is the role of T10Pro in the TOKNAV RTK lineup?
T10Pro is positioned as an engineering-level standard RTK receiver for practical survey and construction workflows.
Does T10Pro support IMU tilt workflows?
Yes. The latest English brochure lists IMU tilt compensation within 60 degrees.
What does the 1408-channel motherboard help with?
It supports multi-constellation signal tracking for reliable positioning in professional field applications.
Which documents should distributors share?
Use the T10Pro PDF, T10Pro Quick User Guide and GNSS Receiver Brochure as the main downloadable materials.
Confirm whether T10Pro fits your project
Send your RTK survey requirements to TOKNAV to confirm whether T10Pro or T20Pro is the better fit.
