NET660i
Base Station Receiver
NET660i is a cost-effective and miniaturized GNSS receiver designed for the construction of Beidou ground-based augmentation system. lt has built-in Linux operating system, completely independent intellectual property development, rich interface types, diverse communication methods, and supports large-capacity data storage. lt is the best choice for the construction of the Beidou ground-based augmentation system.
NET660i
Base Station Receiver
NET660i is a cost-effective and miniaturized GNSS receiver designed for the construction of Beidou ground-based augmentation system. lt has built-in Linux operating system, completely independent intellectual property development, rich interface types, diverse communication methods, and supports large-capacity data storage. lt is the best choice for the construction of the Beidou ground-based augmentation system.
Multi-constellation and multi-frequency
Abundant hardware interface and a variety of protocols
Comprehensive network coverage and compatible with global network providers
Intelligent Linux OS and flexible route management
Safe encrypted data and cloud management
Product Parameters

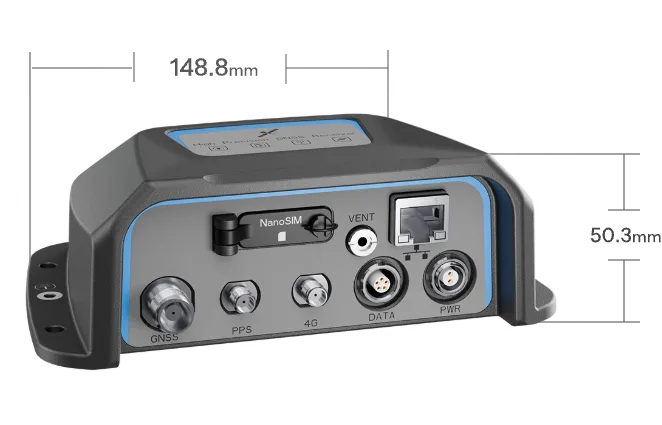

Size
148*105*50.3mm
Weight
490g
Operating System
Channel
GNSS Tracking
Data Communication
Data Storage
Protection
Linux
1408
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
Serial Port, Network, USB
32GB storage
IP68
Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
Related Contents
NET660i CORS GNSS Receiver specifications, applications and FAQ
Cost-effective miniaturized GNSS receiver for BeiDou ground-based augmentation, compact CORS deployments, VRS infrastructure and remote reference station projects.
NET660i CORS GNSS Receiver key parameters from the latest English datasheet
| System and GNSS | Qualcomm Cortex-A7 with Linux; GPS, GLONASS, BDS, Galileo, QZSS, SBAS and NavIC support |
|---|---|
| Accuracy and timing | RTK horizontal +/- (8mm+1ppm), vertical +/- (15mm+1ppm); static horizontal +/- (2.5mm+0.5ppm), vertical +/- (5mm+0.5ppm); 20ns time accuracy |
| Data and protocols | RINEX/Custom data format, NMEA-0183 position data, RTCM 3.X differential data and 1/2/5/10/20Hz update frequency |
| Interfaces | RS232 serial, RJ45 Ethernet, USB, LTE, SIM, PPS, GNSS antenna and 4G antenna ports; 32GB circular storage |
| Power and body | 9-24V DC input, 1.8W typical power dissipation, magnesium alloy body, 135 x 102 x 47mm, <=0.47kg, IP68 |
Application scenarios
- Compact CORS reference station deployments
- Network RTK and VRS infrastructure
- BeiDou ground-based augmentation systems
- Deformation monitoring and long-term reference stations
- Distributor solutions for customers needing a smaller CORS receiver option
Related products and solutions
FAQ
What is NET660i used for?
NET660i is used for compact CORS/reference station deployments, BeiDou ground-based augmentation systems and high-precision GNSS infrastructure projects.
How is NET660i different from NET660?
NET660i is a smaller and cost-effective receiver option, while NET660 is positioned as a higher-performance receiver for ground-based enhancement systems.
Is NET660i suitable for CORS and VRS infrastructure?
Yes. It is designed for reference station and augmentation-system use cases and links naturally to TOKNAV VRS Solution workflows.
Which antenna should be used with NET660i?
CORS deployments should pair NET660i with a suitable GNSS antenna such as TCA920 or another TCA-series antenna based on multipath and installation requirements.
Request a NET660i CORS solution quote
Send station quantity, required data links, antenna plan and project location for solution guidance.
