FIELD MARKING AUTOMATION

Home/Marking Robot Field Marking

GNSS-guided field-marking workflows for project teams.

Review the TOKNAV marking-robot information for sports pitches, road pre-marking and repeatable layout work before requesting a configuration.

Discuss a marking project Browse marking robots
TOKNAV field-marking robot

PRODUCT & WORKFLOW DETAILS

Marking Robot Field Marking

Review the available details below, then contact TOKNAV with the application, operating location and required configuration.

Europe | North&South America:  +1(323)847-7713 (Ian)

Asia | Africa | Oceania:  +86 139 2607 5986 (Jeffrey)

[email protected]

Marking Robot

Sports Field Marking Robot

Sports fields | Highways | Municipal roads | Airport runways

  • GNSS Receiver Manufacturer
  • Professional OEM&ODM
  • Over 15 years experience in R&D and manufacturing

System Architecture

Import design files

Manual point collect via RTK

Select standard model on tablet

Algorithm

Decrypt, Calculation

Task scheduling, Route planning, Measuring and Locating

Automatic marking, drawing

Task recording and report

Project management, progress, statistics, review, etc

Results

Application Area

Highway

Parking lot

Sport fields

Municipal road

Agriculture

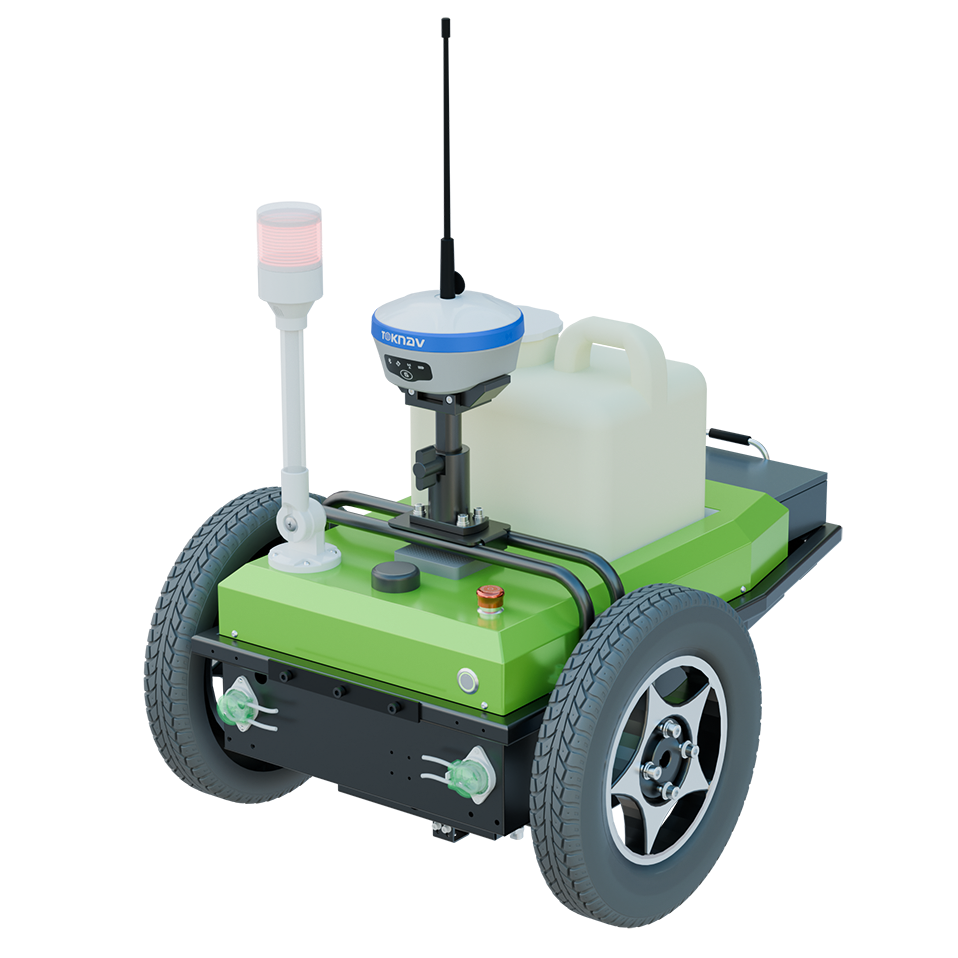

Intelligent Line Marking Robot

Physical

Dimensions(L*W*H):

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

558mm*610mm*527mm

400mm

465mm

36kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/15Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°(Turn in place)
20°

Pre-Marking

Speed:
2.6km/h
Material:
Latex paint/Titanium white slurry
Accuracy:
less than 1.5cm
Line types:
Dots, lines, curves, numbers, letters, patterns

Characteristic

Lithium 8 hours

Error ≤1.5cm

Speed 2.6km/h

3x

Faster than manual operation

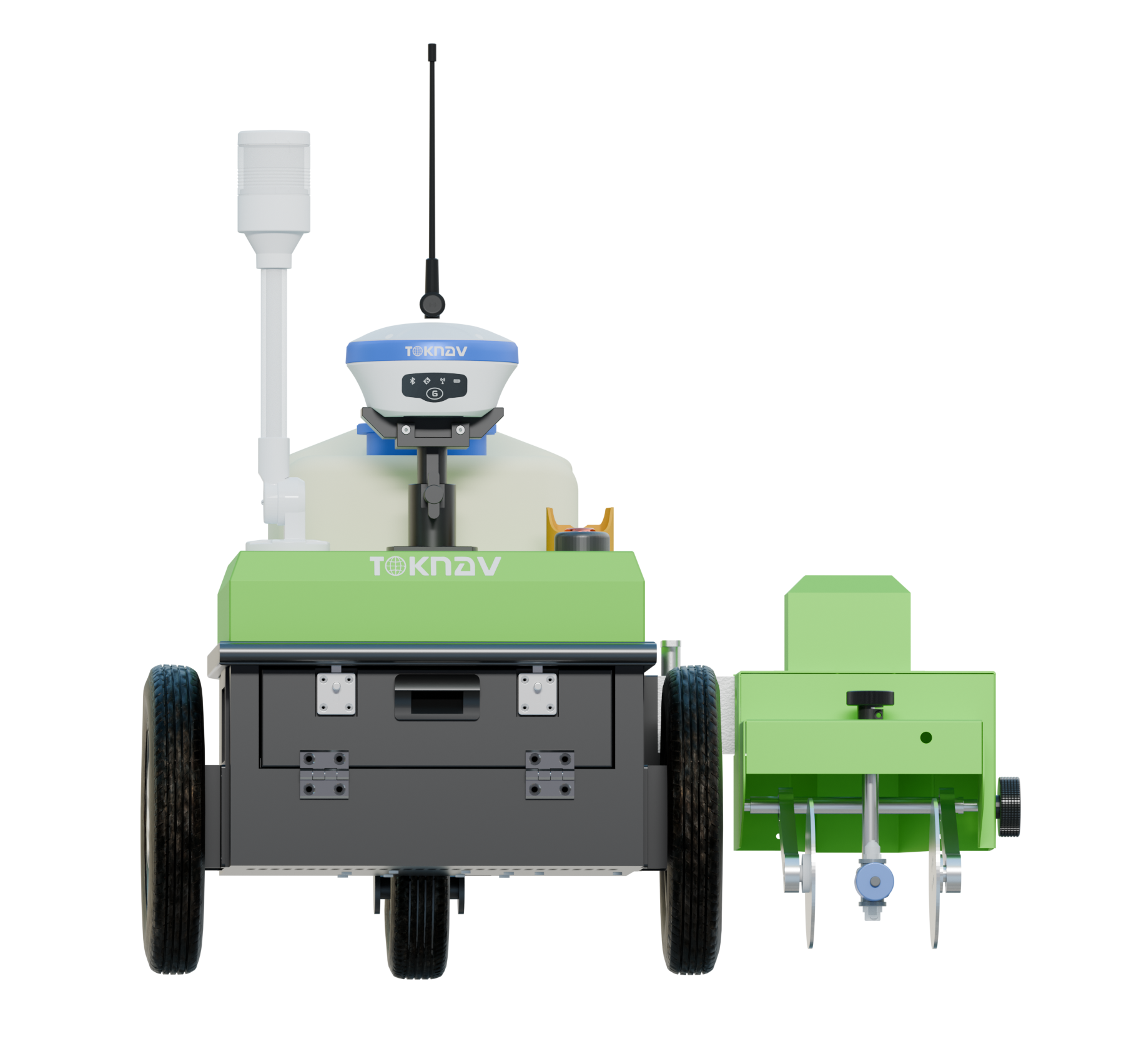

Sport Field Marking Robot

Physical

Dimensions(L*W*H):
525mm*746mm*527mm
(Removable side scribing mechanism with a width of 243mm)

Wheelbase:

Wheel Track:

Weight:

Hopper capacity:

400mm

465mm

45kg

10L

Battery

Battery type:
Battery Life:
Endurance:
48V/7.5Ah
8h
30km

Environment

Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X
划线宽线4

Mobility

Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
400W*2
1m/s
0°((Turn in place)
20°

Field Marking

Sports Field Type:
Running track, tennis court, soccer field, football field, lacrosse court, baseball field
Drawing Width:
5cm~15cm adjustable side nozzle

Characteristic

Lithium 8 hours

Error ≤2cm

Speed 1m/s

3x

Faster than manual operation

Customer feedback

About TOKNAV

120+ Countries and Area

TOKNAV, a global brand from Guangzhou, is advancing the accessibility of high-precision measuring technology worldwide. We deliver accurate, reliable, and portable GNSS and industrial measurement solutions that empower professionals in surveying, precision agriculture, unmanned vehicles, automatic control of construction machinery and digital construction. Through continuous innovation and a network spanning over 120 countries, we are committed to being a trusted partner that drives progress and elevates the standard of precision instruments globally.

Slogan

Your reliable supplier in positioning!

Values

Pragmatism · Product first.
Integrity first · Long-termism

Mission

Make positioning more precise
and easier.

Contact Us

No. 9 Caipin Road，Building B, Room 801-6, Huangpu District, Guangzhou, China

Copyright © 2025 Guangzhou TokSurvey Information Technology Co.,ltd

Field-marking workflow

Choose the marking robot around the site and line workflow

An automated field-marking project begins with the surface, pitch layout, site access and the line files used by the operator. The goal is a repeatable workflow for routine marking, seasonal changes and staff handover, rather than a one-time equipment decision.

RTK positioning needs a dependable correction method and a clear local setup process. Before deployment, agree how layouts will be prepared, how consumables and route safety will be managed, and how the team will check finished lines against the approved plan.

Practical planning checks

Discuss a field-marking robot project

Frequently asked questions

What should be prepared before using a field-marking robot?

Prepare the approved layout, site-access plan, correction workflow, surface and safety checks, consumables plan and the operator process for reviewing the finished lines.

How does RTK positioning fit a field-marking workflow?

RTK positioning is part of the planned layout and machine-navigation workflow. Its correction method and site setup should be confirmed before routine marking begins.

Can a marking workflow be used across multiple fields?

Yes, when each field has approved layout data and the team confirms its access, correction availability, surface conditions and operating procedure.
