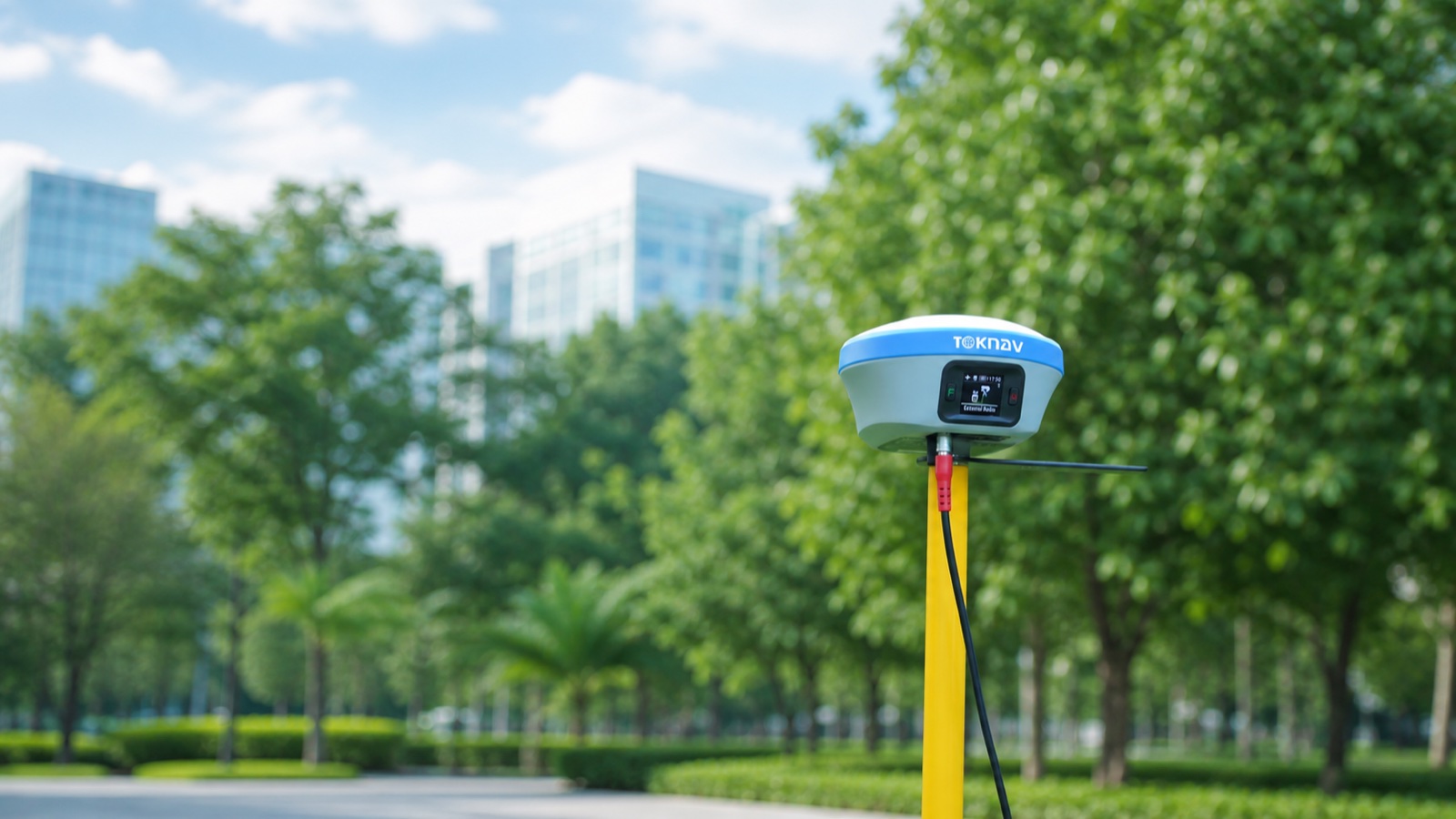

T20Pro GNSS RTK Receiver

Adjust the radio transmit power to suit the correction link between your base and rover.

1408GNSS channels
Horizontal ±(8 mm + 1 ppm); vertical ±(15 mm + 1 ppm)RTK accuracy
410–470 MHz; 1 W / 2 W / 5 WIntegrated UHF radio
7.4 V 6500 mAh; over 18 h stated; IP68; 900 gBattery and protection

Start with the T20Pro application, then define the configuration.

T20Pro on a survey pole and a handheld controller in a field in India.

Designed for the role

T20Pro is designed as a multifunctional GNSS RTK receiver with adjustable high-power radio.

GNSS channels

Published product information lists 1408.

RTK accuracy

Published product information lists Horizontal ±(8 mm + 1 ppm); vertical ±(15 mm + 1 ppm).

Configuration support

TOKNAV can help confirm compatible equipment, destination-market requirements and the intended project workflow.

Surveyor with a T20Pro on a construction site in India.

Applications

Topographic survey

Discuss the Topographic survey workflow and the role of T20Pro in the intended project.

Construction layout

Discuss the Construction layout workflow and the role of T20Pro in the intended project.

Control-point measurement

Discuss the Control-point measurement workflow and the role of T20Pro in the intended project.

Cadastral and infrastructure survey

Discuss the Cadastral and infrastructure survey workflow and the role of T20Pro in the intended project.

System and GNSS
Hardware system
ARM Cortex-A7 1.8 GHz
Operating system
Linux
GPS
L1C/A, L1C, L2P(Y), L2C, L5
GLONASS
L1, L2, L3
BDS
B1I, B2I, B3I, B1C, B2a, B2b (PPP)
Galileo
E1, E5a, E5b, E6 (PPP)
QZSS
L1, L2, L5
SBAS
L1 (PPP)
NavIC (IRNSS)
L5
Channels
1408
Standard output
NMEA-0183
Correction I/O protocol
RTCM 3.X
Update rate
20 Hz (max.)
Reacquisition time
<1 s
Cold-start time
<40 s
Accuracy
Single (RMS)
Horizontal: 1.5 m; Vertical: 2.5 m
DGPS (RMS)
Horizontal: 0.4 m; Vertical: 0.8 m
RTK (RMS)
Horizontal: ± (8 mm + 1 ppm); Vertical: ± (15 mm + 1 ppm)
Timing precision (RMS)
20 ns
Static mode precision (RMS)
Horizontal: ± (2.5 mm + 0.5 ppm); Vertical: ± (5 mm + 0.5 ppm)
Velocity estimation (RMS)
0.03 m/s
Tilt correction (within 60°)
<2 cm
Connectivity and radio
Bluetooth
BR + EDR + BLE
Wi-Fi
802.11 b/g/n
Cellular network
LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; LTE TDD: B38/39/40/41; WCDMA: B1/2/4/5/6/8/19; GSM: B2/3/5/8
Radio frequency
410–470 MHz
Radio protocols
TRIMTALK, TRIMMK3, SOUTH, TRANSEOT
RF transmit power
1 W / 2 W / 5 W
Air baud rate
9600, 19200 bps
Display, storage and power
Storage
32 GB
Screen size
1.3 inch
Display mode
TFT
Display format
240 × RGB × 240
View angle
Full
Battery
7.4 V, 6500 mAh
Work time
More than 18 hours (typical rover/GSM); static mode supports continuous data collection for 26 hours
Charging
USB PD 15 V/2 A; 5 V/3 A. Supports fast-charging adapters and adaptive, dynamic current adjustment.
Environment and physical
Operating temperature
−20 °C to +60 °C
Storage temperature
−40 °C to +85 °C
Shock
Withstands a 1.5 m pole drop
Protection
IP68
Materials
Magnesium-alloy casing with ABS/PC plastic top cover
Dimensions
Φ143.5 mm × 90.7 mm
Weight
900 g
Accessories and certification
Included accessories
T20Pro receiver ×1; USB power adapter ×1; Type-C to Type-C cable ×1; radio antenna ×1
Regulatory compliance
NGS, CE, FCC

PRODUCT TESTING

See T20Pro testing and field workflows

Explore TOKNAV-supplied footage for this model. Review the setup shown, then discuss the configuration and acceptance checks your project needs.

More T20Pro videos (6)

Test conditions and results apply to the setup shown. For a specification or acceptance requirement, ask for the corresponding test details.

FAQ

Where are the published T20Pro values shown?

The technical summary on this page lists the published values selected for this model. Available documents can be found in the downloads section.

How should T20Pro be specified for a project?

Share the country of use, application, operating conditions, intended workflow and connected equipment. TOKNAV can then help identify a suitable configuration.

Can the same configuration be used in every market?

Not necessarily. Communication options, enabled functions, accessories, local rules and project integration can vary. Confirm the final configuration before purchase or deployment.
