PORTABLE RTK & FIELD GIS
P8 and P8Pro portable RTK equipment for field data collection.
Use this page to review the existing P8/P8Pro information for mobile mapping, GIS collection and positioning workflows.
PRODUCT & WORKFLOW DETAILS
P8/P8Pro
Review the available details below, then contact TOKNAV with the application, operating location and required configuration.
P8/P8Pro
Portable RTK Receiver
P8/P8Pro is a portable intelligent positioning terminal developed based on BDS high-precision positioning technology. The main unit is lightweight and compact, making it easy to carry around. It supports tracking of signals from all satellite constellations with 1408 channels, providing centimeter-level positioning accuracy. It caters to various measurement and layout tasks such as road construction, power line surveying, site leveling control, CAD applications, railway stakeout, and etc.
P8/P8Pro
Portable RTK Receiver
P8/P8Pro is a portable intelligent positioning terminal developed based on BDS high-precision positioning technology. The main unit is lightweight and compact, making it easy to carry around. It supports tracking of signals from all satellite constellations with 1408 channels, providing centimeter-level positioning accuracy. It caters to various measurement and layout tasks such as road construction, power line surveying, site leveling control, CAD applications, railway stakeout, and etc.
New design with lightweight portability
Achieving centimeter-level accuracy in various complex enviroment
SDK provided, easy for further development
Easy to carry with one hand
Product Parameters

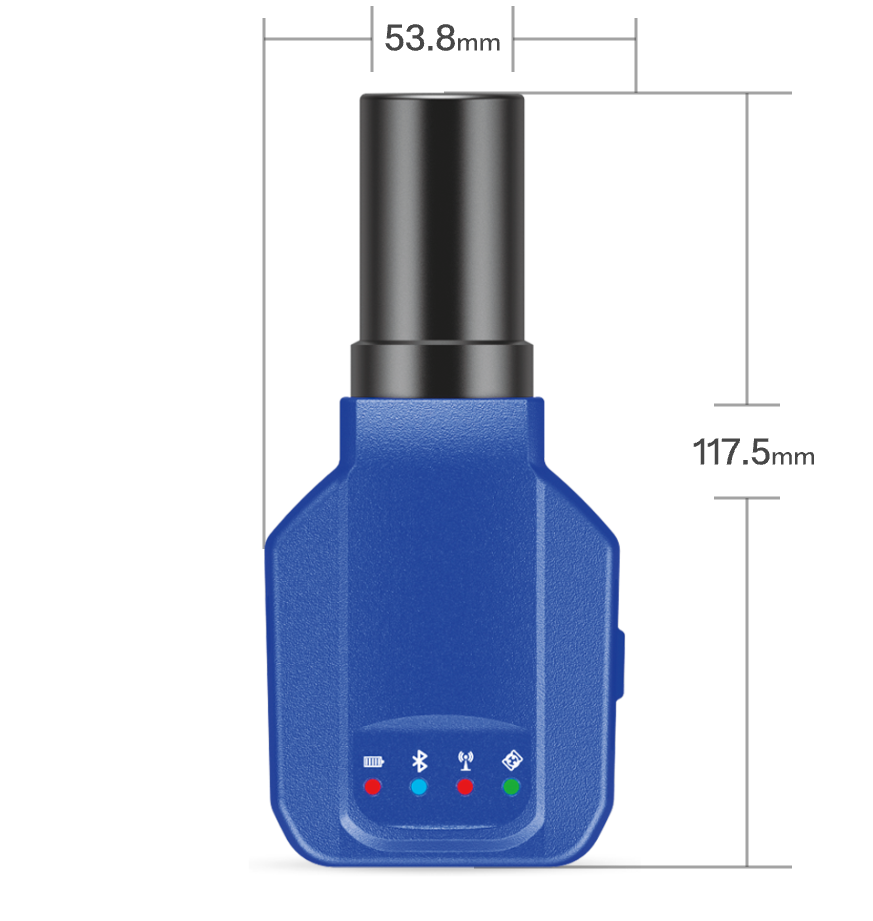

Size
53.8*37*117.5mm
Weight
141g, 143g(P8Pro)
Hardware System
Operating System
GNSS Tracking
Data Communication
Data Update Frequency
Protection
Work Time
ESP32 + ASR ARM
FreeRTOS
GPS, GLONASS, BDS, GALILEO, QZSS and SBAS
4G, Bluetooth
5Hz
IP67
More than 8 hours
Equipped with electronic fence system, Toknav’s product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
