Deformation Monitoring

GNSS based monitoring system

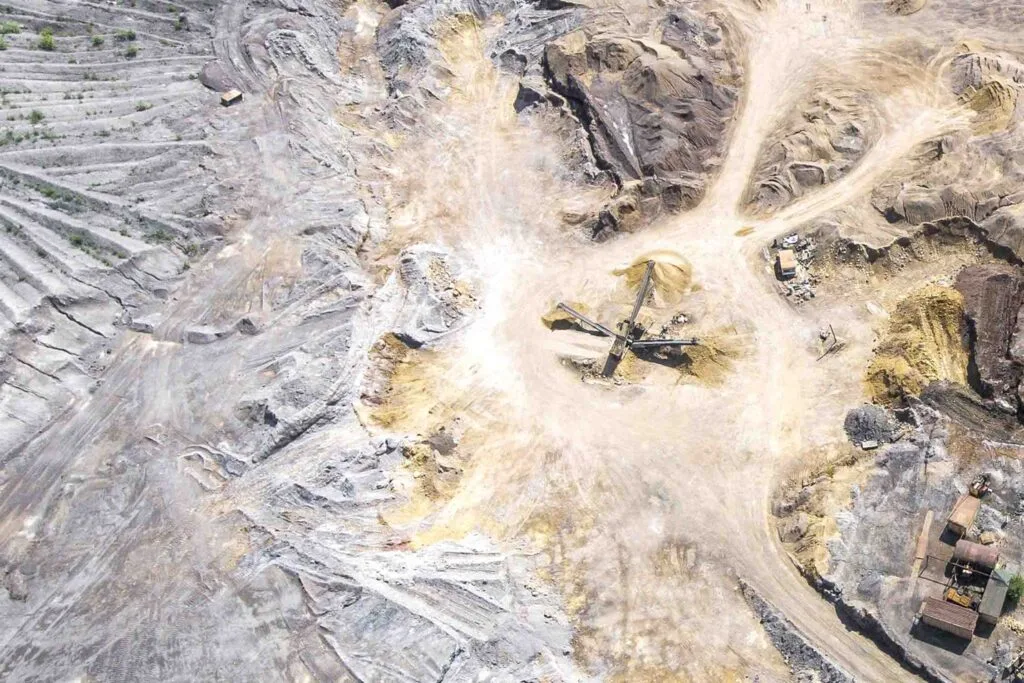

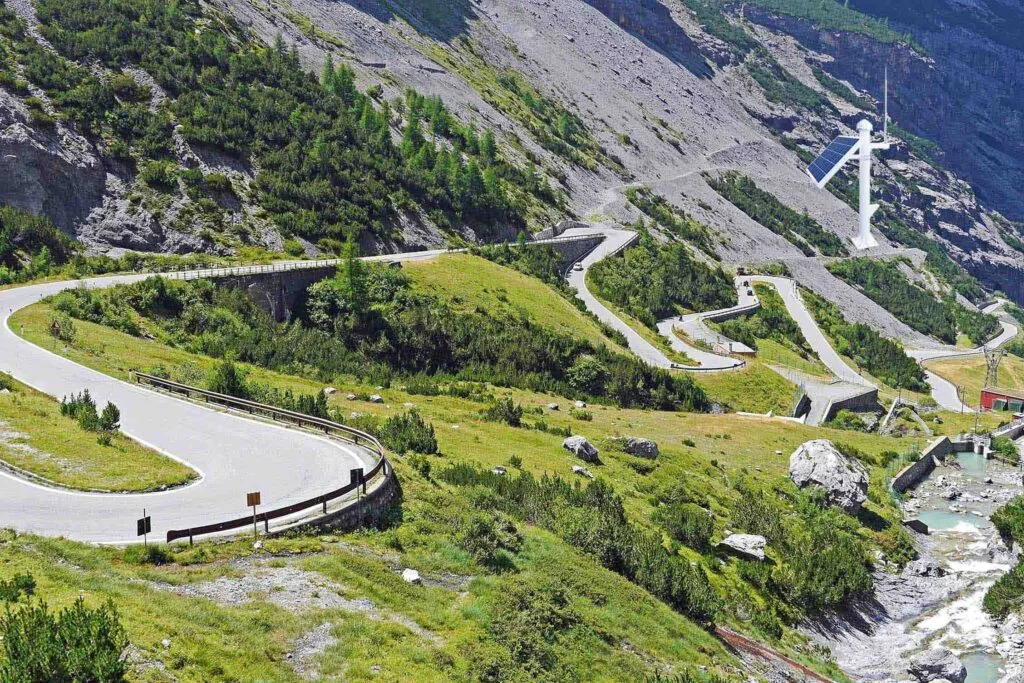

The GNSS based monitoring system is widely applied in the fields of landslide geological hazard monitoring, dam deformation monitoring, mining area surface subsidence monitoring, tailings reservoir deformation monitoring, bridge deformation monitoring and high-rise building deformation monitoring and other fields with potential safety hazards.

Deformation Monitoring

GNSS based monitoring system

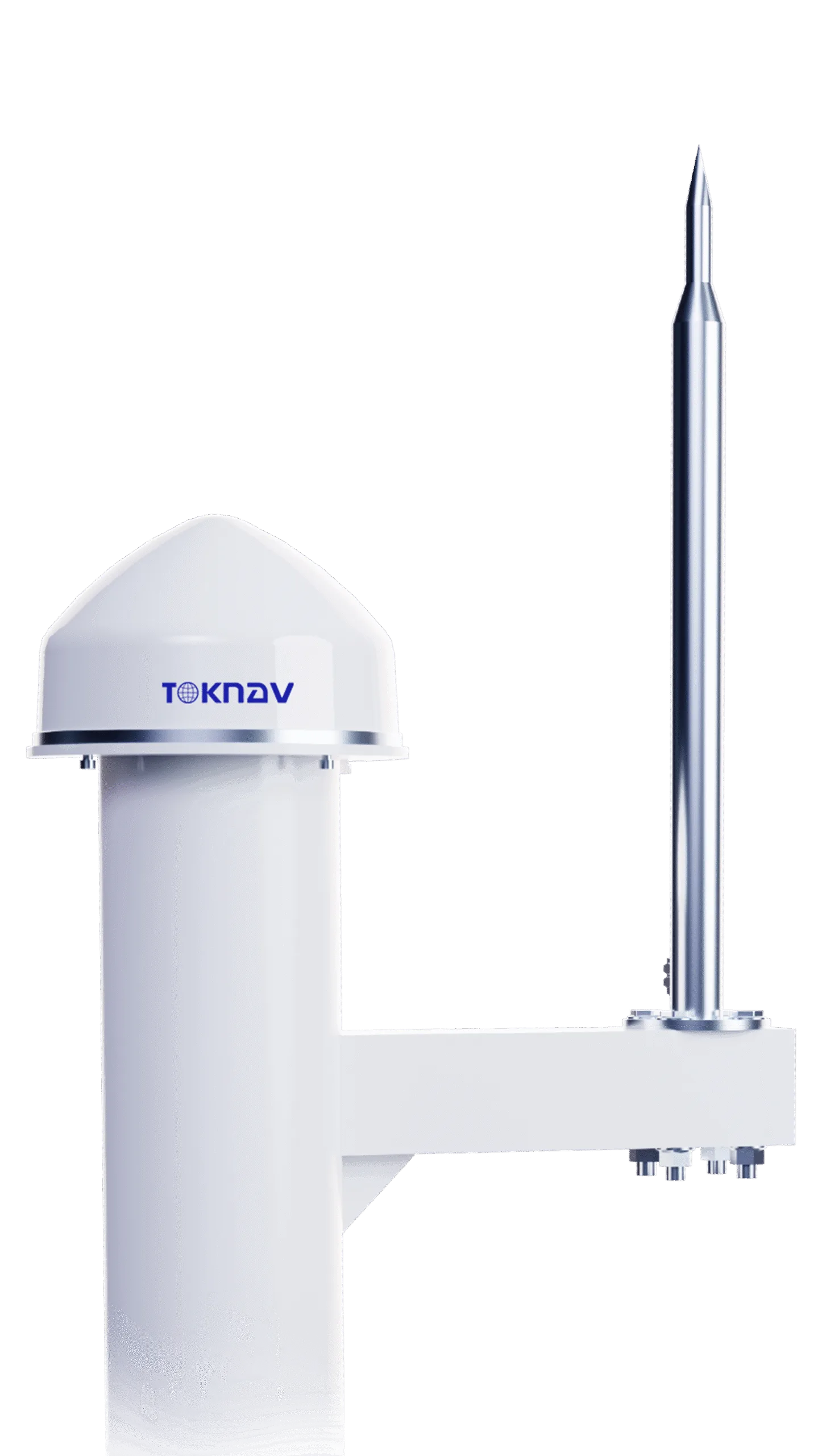

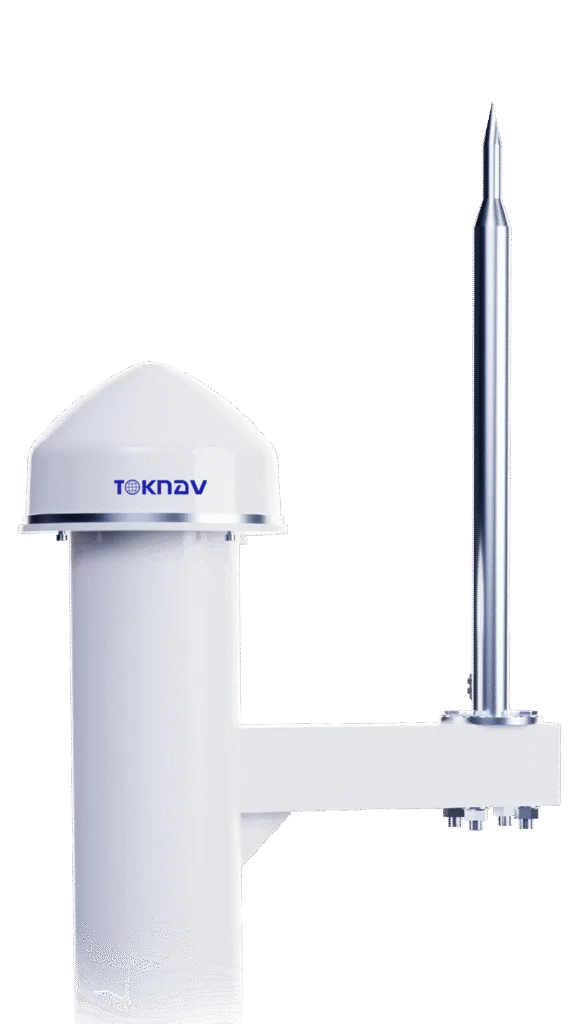

Deformation Monitoring drives the U6 Universal Monitoring All‑in‑One Machine, Toknav’s independently developed GNSS receiver built for geological disaster monitoring and early warning. Its compact, highly integrated form enables fast installation and minimal maintenance. Ultra‑low power design cuts battery and solar panel capacity needs, greatly reducing site construction and long‑term operation costs.

At its heart lies a Linux + Qualcomm Cortex‑A7 intelligent platform, delivering robust computing power and endless scalability. The integrated high‑precision, low‑power GNSS module supports BDS, GPS, GLONASS, Galileo and QZSS multi‑constellation positioning. 4G full‑network connectivity ensures stable, high‑compatibility 2/3/4G links for consistent data delivery.

Integrated high‑precision three‑axis accelerometer and barometer work with a refined fusion algorithm engine to eliminate false alarms and enable reliable medium‑to‑long‑term early warning. Boasting IP68 protection, wide −40℃ to +85℃ operation, and 1.8W ultra‑low power, it maintains stable performance in harsh outdoor environments.

The U6 features full cloud connectivity, automatically reporting position, network status, signal strength and satellite lock. It supports remote restart, configuration and firmware upgrade. With RS232/RS485, Bluetooth, Wi‑Fi and LoRa, plus 32GB storage, it provides a complete, high‑reliability deformation monitoring solution.

System Architecture

System Characteristics

Millimeter-level accuracy

The platform reliably processes and analyzes monitoring data with exceptional stability, high precision, and minimal error margins at all times.

High real-time

Real-time data collection runs very continuously, with deformation monitoring results output every 4 hours. The system can switch to a fast mode, outputting accurate monitoring results every 0.5 hours.

Rich forms of alarm

The early warning release method is highly flexible, with alerts sent and received via email, SMS, WeChat and other common channels.

Long-range control & management

Support remote devices on the platform to perform restart, configuration, upgrade and other essential management operations efficiently and securely.

High-performance antenna

Features an internally integrated, self-developed, high-performance antenna with choke shorting columns and vertical choke plates, effectively suppressing multipath signals and improve the measurement accuracy of the antenna.

All weather operation

In severe weather such as thunderstorms and heavy rainstorms, the device can operate stably around the clock and features strong lightning protection as well as outstanding anti-interference performance in harsh environments.

Millimeter-level accuracy

The platform solves the data with stability, high precision and small error.

Long-range control & management

Support remote devices on the platform to restart, set, upgrade and other operations.

High real-time

Real-time data collection, with deformation monitoring results output every 4 hours. The system can be switched to a fast mode, outputting monitoring results every 0.5 hours.

High-performance antenna

Rich forms of alarm

The early warning release method is flexible, and the early warning is sent and received by email, SMS, WeChat, etc.

All weather operation

In severe weather such as thunder and rainstorm, it can run stably and has strong lightning protection and anti-interference performance.
